Description

HiKOKI’s Gasless Nailer technology provides unprecedented power and low running costs across a wide range of timber nailing applications.

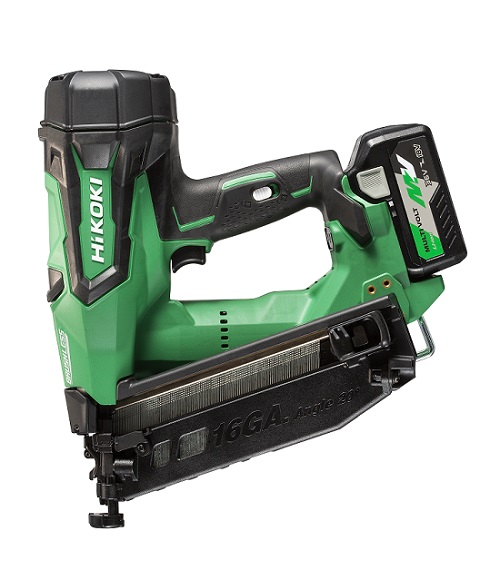

NT1865DA(HRZ) is available as a kit or naked and compatible with MULTI VOLT™ Batteries.



Product features:

  • Powered by brushless motor
  • Stable driving force to improve work efficiency
  • 20° nail angle provides better access into tight spaces
  • Drive up to 2,900 nails per charge
  • Dry-fire lockout function stops the nailer from being fired when nail levels are low
  • Stable operation in various cold environments
  • Low running costs as there is no fuel cell
  • Reduced maintenance due to no gas cartridges
  • Tool-less drive depth adjuster
  • Low noise and low recoil, making it safer and more comfortable to use
  • Bright LED light
  • Always use the correct specification nail as described in the Operating Manual. Nails outside this specification may cause the nailer to operate incorrectly or cause damage.



Warranty:

  • 3 Years Standard Warranty
  • 6 Years Extended Warranty if registered online

Specifications

NT1865DA(HRZ) Product Specification:

Type of power 18V
Type of motor  Brushless
Driving System  Unique Air Drive
Nail length  32 to 65 mm
Driving speed  3 nails/sec (Intermittent)
Loading capacity  100 nails
Firing mode  Full sequential/contact (selectable)
Fastening series 16 GA angle
Magazine angle  20º
LED  White LED
Applicable nail shank diameter 1.4 x 1.65 mm
Weight (with BSL36A18 battery) 3.7kg
Dimension (H x L x W)  323 x 310 x 104mm
