Description

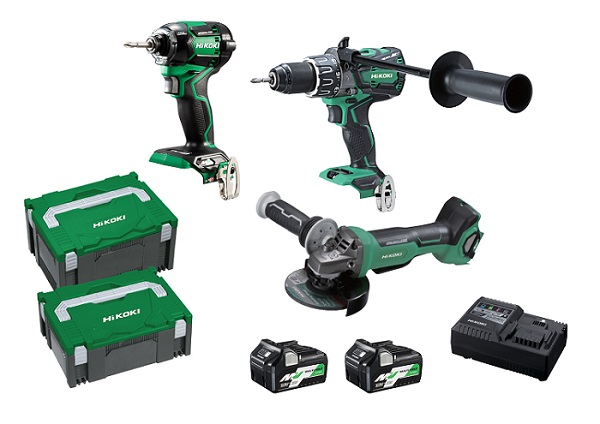

Get the job done faster and easier with HiKOKI KC36DDBL2(HRZ) 36V Brushless 3pc Combo Pack

Kit includes:

  • DV36DA 36V Brushless Impact (Hammer) Driver Drill
  • WH36DC 36V Brushless 1/4" Impact Driver
  • G3613DB 36V Brushless 125mm Paddle Angle Grinder
  • 2 x BSL36A18 Li-ion MultiVolt Battery A
  • UC18YSL3 Rapid Charger with cooling & USB port
  • Stackable cases



Warranty:

  • 3 Years Standard Warranty
  • 6 Years Extended Warranty if registered online



Click here to find the closest HiKOKI dealer near you

Specifications

DV36DA 36V Brushless Impact (Hammer) Driver Drill

Capacity Masonry 20mm
Wood 102mm
Steel 16mm
No load speed 0 - 500 / 0 - 2,100 (min-1)
No load impact rate 0 - 31,500 (min-1)
Max. torque Hard 138Nm
Soft 64Nm
Weight 2 kg (without battery)
Length 204mm



WH36DC 36V Brushless 1/4" Impact Driver

Capacity Small screw*¹  4 to 10 mm (5/32" to 3/8")
Ordinary bolt  5 to 18 mm (3/16'' to 23/32'')
High tension bolt  5 to 14 mm (3/16'' to 9/16'')
Self drilling screw 3.5 to 6 mm (1/8" to 1/4") in diameter
Tightening torque*² Power mode 215 Nm
Bolt mode  215 Nm
Soft mode  76 Nm
No-load speed (with a battery fully charged at 20°C) Power mode 0 to 3,400 min-¹
Bolt mode  0 to 2,900 min-¹
Bolt single mode  0 to 2,900 min-¹
Soft mode  0 to 900 min-¹
Self drilling screw mode  0 to 3,700 min-¹
Impact rate (with a battery fully charged at 20°C) Power mode 0 to 4,100 min-¹
Bolt mode  0 to 4,100 min-¹
Bolt single mode   0 to 4,100 min-¹
Soft mode  0 to 2,000 min-¹
Self drilling screw mode 0 to 2,200 min-¹
Drive  6.35 mm (1/4”) bit holder
Type of switch Variable speed trigger switch with forward/reverse changeover lever (with brake)
LED light White LED (Always ON, Light only SW-ON, and Always OFF)
Weight  1.6 kg
Dimensions (L x H )  114 x 241 mm



G3613DB 36V Brushless 125mm Paddle Angle Grinder

Wheel diameter 125mm
Switch type Paddle
No load speed Auto mode 5,500 (min-1)
Standard mode 3,000 - 9,500 (min-1)
Spindle thread M14 x 2
Weight 2.1kg (without the battery)
Dimensions Length 358mm
Height 139mm
Grip circumference 146mm
