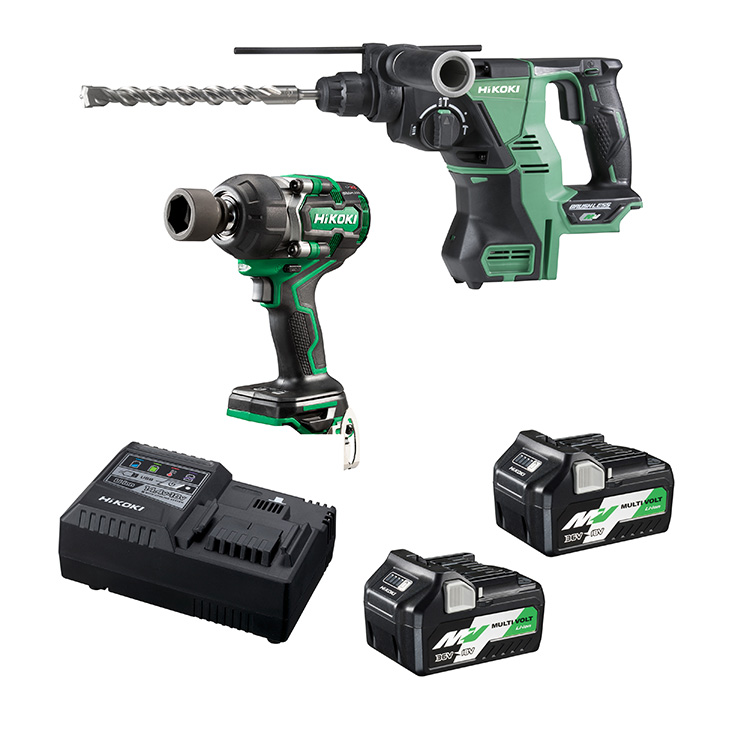

Description

1 x WR36DE(H4Z) 36V Brushless 12.7mm (1/2") Impact Wrench Kit
1 x DH36DPA(H4Z) 36V Brushless SDS Plus Rotary Hammer
2 x BSL36A18 2.5Ah/ 18V 5.0Ah MultiVolt Li-ion Battery
1 x UC18YSL3(H0Z) Li-ion Rapid Slide Battery Charger

Specifications

WR36DE(H4Z) 36V Brushless 12.7mm (1/2") Impact Wrench Kit

Capacity  Ordinary bolt M10-M24 (3/8" to 1")
High-strength bolt M10-M20 (3/8" to 3/4")
Tightening torque*¹  770Nm
Nut busting torque*²  1,050Nm
Tip condition  12.7 mm (1/2”) square drive
No-load rotation speed 4 0 to 2,400 min-¹
3 0 to 2,100 min-¹
2 0 to 1,800 min-¹
1 0 to 1,500 min-¹
Impact rate 4 0 to 3,400 min-¹
3 0 to 3,000 min-¹
2 0 to 2,600 min-¹
1 0 to 2,200 min-¹
LED light  White LED (SW interlocked)
Type of switch Trigger switch with forward/reverse changeover lever (with brake)
Accessories Belt Hook
Weight  1.9kg (without battery)
Dimensions (L x H )  169 x 242mm
*¹: This torque is measured when tightening an M24 high-strength bolt (strength rating: 10.9) for 10 seconds with a hexagonal socket.
*²: This torque is measured when loosening an M27 high-strength bolt (strength rating :F10T) with a hexagonal socket.

DH36DPA(H4Z) 36V Brushless SDS Plus Rotary Hammer

Capacity

Masonry

28mm
Wood 32mm
Steel 13mm

No load speed

0 - 1,100 (min-1)

Impact rate

0 - 4,300 (min-1)

Impact energy

3.0j (EPTA Standard)

Chuck type

SDS Plus

Weight

4.2kg (with BSL36A18 battery)

Length

400mm

Battery type

Compatible with HiKOKI MultiVolt batteries

Standard accessories

Side handle
