Description

Get the job done faster and easier with HiKOKI KC18D12P2(HRZ) 18V 12 Piece Combo

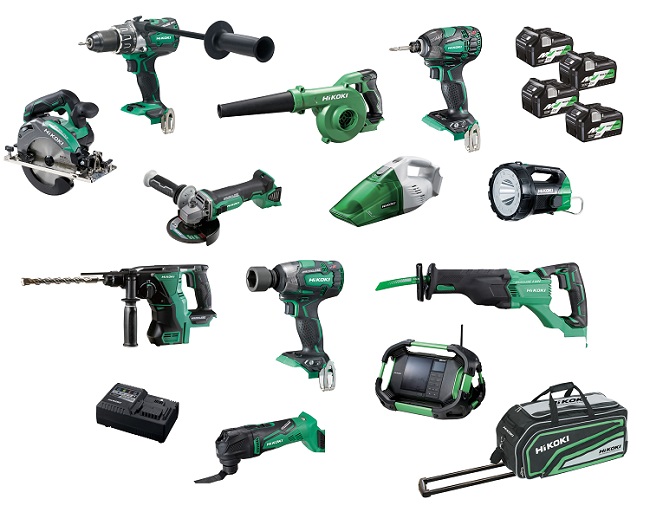

Kit includes:

  • DV18DBL2 Brushless 18V Impact (Hammer) Driver Drill
  • WH18DBDL2 Brushless 18V Impact Driver
  • WR18DBDL2 Brushless 18V Impact Wrench
  • G18DBL Brushless 18V Angle Grinder
  • DH18DBL Brushless 18V Rotary Hammer
  • CR18DBL Brushless 18V Reciprocating Saw
  • C18DBAL Brushless 18V Circular Saw
  • CV18DBL Brushless 18V Multi-Tool
  • RB18DSL 18V Blower & Vacuum
  • R18DSL 18V Wet & Dry Vacuum
  • UR18DSDL 18V Digital Radio with Bluetooth
  • UB18DA(W4Z) 18V Search Light
  • 4 x BSL36A18 MultiVolt Battery (A)
  • UC18YSL3(H0Z) Rapid Charger with Cooling & USB Port
  • Premium Site Bag - 402096



Warranty:

  • 3 Years Standard Warranty
  • 6 Years Extended Warranty if registered online



Click here to find the closest HiKOKI dealer near you

Specifications

DV18DBL2 18V Brushless Impact (Hammer) Driver Drill

Capacity Masonary 16mm
Wood 76mm
Steel 13mm
No load speed 0 - 500 / 0 - 2,100 (min-1)
No load impact rate 0 - 31,500 (min-1)
Max. torque Hard 136Nm
Soft 62Nm
Weight 2.5kg (with BSL36A18 battery)
Length 204mm



WH18DBDL2 18V Brushless Impact Driver

Capacity Bolt M5 - M18
High tension bolt M5 - M14
Screw M4 - M10
Max. torque 210Nm
No load speed Soft mode 0 - 900 (min-1)
Normal mode 0 - 2,900 (min-1)
Power mode 0 - 2,900 (min-1)
S mode (Self drilling) 0 - 2,900 (min-1)
Impact rate Soft mode 0 - 1,900 (min-1)
Normal mode 0 - 4,000 (min-1)
Power mode 0 - 4,000 (min-1)
S mode(Self drilling) 0 - 2,100 (min-1)
Weight 1.6kg (with BSL36A18 battery)
Length 127mm



WR18DBDL2 Brushless 18V Impact Wrench

Capacity Bolt M10 - M20
High tension bolt M10 - M16
Max. torque Tightening 305Nm
Square Drive 12.7mm (1/2”)
No load speed High mode 0 - 2,700 (min-1)
Medium mode 0 - 2,000 (min-1)
Low mode 0 - 1,000 (min-1)
Single mode 0 - 2,700 (min-1)
Full load impact rate 0 - 3,600 (min-1)
Weight 1.8kg (with BSL36A18 battery)
Length 145mm



G18DBL 18V Brushless 125mm Angle Grinder with Slide Switch

Wheel diameter 125mm
Switch type Slide
No load speed Auto mode 5,500 (min-1)
Standard mode 9,000 (min-1)
Spindle thread M14 x 2
Weight 2.4kg (with BSL36A18 battery)
Dimensions Length 326mm
Height 138mm
Grip circumference 152mm



DH18DBL 18V Brushless SDS-Plus Rotary Hammer

Capacity Masonary 26mm
Wood 27mm
Steel 13mm
No load speed 0 - 1,050 (min-1)
Impact rate 0 - 3,950 (min-1)
Impact energy 2.6J
Chuck type SDS Plus
Weight 3.7kg (with BSL36A18 battery)
Length 351mm



CR18DBL 18V Brushless Reciprocating Saw

Capacity Steel pipe 130mm
Wood 120mm
Steel plate 19mm
No load speed 0 - 1,600 / 2,300 / 2,500 (min-1)
Stroke length 32mm
Weight 3.4kg (with BSL36A18 battery)
Length 435mm



C18DBAL 18V 165mm Brushless Circular Saw

Capacity Max. of depth cut: 90° 66mm
Max. of depth cut: 45° 45mm
No load speed Power mode 4,100 (min-1)
Silent mode 2,500 (min-1)
Blade diameter 165mm
Angle cutting -5° - 45°
Weight 3.2kg (with BSL36A18 battery)
Dimensions Length 294mm
Width 188mm
Height 255mm



CV18DBL Brushless 18V Multi-Tool

Operating speed / Vibration frequency Standard mode 6,000 - 20,000 (min-1)
Auto mode (no load) 6,000 - 15,000 (min-1)
Auto mode (with load) 6,000 - 20,000 (min-1)
Weight 2.0kg (with BSL36A18 battery)
Length

307mm





RB18DC 18V Blower & Vacuum

Air volume *¹  3.5 m³/min
Maximum air velocity *²  95m/s
Average air velocity *²  78 m/s
Continuous operating time per charge 20 to 130 minutes*³
Switch type  Trigger
Type of motor  Brushed
Weight  1.1kg (without battery)
Dimensions (L x H x W)  490 x 207 x 150mm

*¹ Without nozzle

*² With nozzle

*³ With BSA36A18 battery



R18DSL 18V Wet & Dry Vacuum

Capacity Dust: 670ml / Liquid: 120ml
Runtime 50min (with BSL36A18 battery)
Weight 1.5kg (with BSL36A18 battery)
Length 430mm



UR18DSDL 18V Digital Radio with Bluetooth

AM frequency 522 - 1629 (KHz)
FM frequency 87.5 - 108 (MHz)
Speaker 90mm (8Ω) 7W x 2
Weight 4.0kg (without battery)
Dimensions (without accessories) Length 405mm
Width 312mm
Height 265mm



UB18DA(W4Z) 18V Search Light

Lighting mode Spot + wide 2,500 lm
Spot 1,100 lm
Wide 1,300 lm
Wide (eco) 400 lm
Runtime Spot + wide 3 hrs (with BSL1860 battery)
Spot 6 hrs (with BSL1860 battery)
Wide 5.8 hrs (with BSL1860 battery)
Wide (eco) 22 hrs (with BSL1860 battery)
Weight 1.85 kg
Dimensions Length 280mm
Width 203mm
Height 204mm
