Description

Get the job done faster and easier with HiKOKI KC18D4P(PMZ) 18V 4 Piece Carpenter Combo

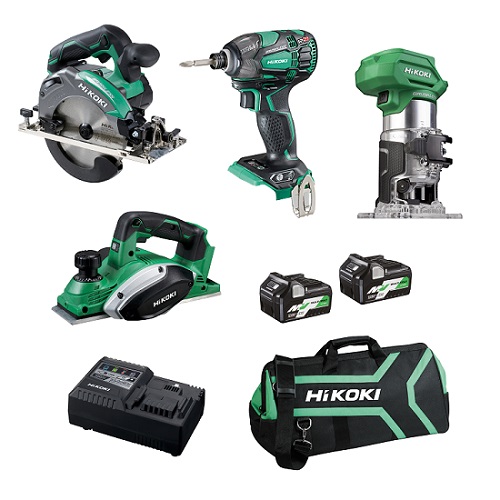

Kit includes:

  • M1808DA 18V Brushless Laminate Trimmer
  • P18DSL 18V Planer
  • C18DBAL 18V Brushless 165mm Circular Saw
  • WH18DBDL2 18V Impact Driver
  • 2 x BSL36A18 Li-ion MultiVolt Battery A
  • UC18YSL3 Rapid Charger with cooling & USB port
  • Large site bag



Warranty:

  • 3 Years Standard Warranty
  • 6 Years Extended Warranty if registered online



Click here to find the closest HiKOKI dealer near you

Specifications

M1808DA 18V Brushless Laminate Trimmer

Collet cone capacity 6.35 and 8mm
No-load speed 10,000 - 30,000 min-¹
Type of motor DC brushless motor
Weight 1.7kg
Dimensions (L x H x W) 109 x 229 x 100 mm



P18DSL 18V Planer

Cutting width

82mm

Max. cutting depth

2.0mm

Max. rebating depth

9.0mm

No load speed

16,000 (min-1)

Weight

3.3kg (with BSL36A18 battery)

Dimensions

Length



Width



Height

332mm



166mm



160mm

Standard accessories

4 x 82mm reversible TCT blades



C18DBAL 18V Brushless 165mm Circular Saw

Capacity

Max. of depth cut: 90°



Max. of depth cut: 45°

66mm



45mm

No load speed

Power mode



Silent mode

4,100 (min-1)



2,500 (min-1)

Blade diameter

165mm

Angle cutting

-5° - 45°

Weight

3.2kg (with BSL36A18 battery)

Dimensions

Length



Width



Height

294mm



188mm



255mm

Standard accessories

Blade and wrench



WH18DBDL2 18V Impact Driver

Capacity

Bolt



High tension bolt



Screw

M5 - M18



M5 - M14



M4 - M10

Max. torque

210Nm

No load speed

Soft mode



Normal mode



Power mode



S mode (Self drilling)

0 - 900 (min-1)



0 - 2,900 (min-1)



0 - 2,900 (min-1)



0 - 2,900 (min-1)

Impact rate

Soft mode



Normal mode



Power mode



S mode(Self drilling)

0 - 1,900 (min-1)



0 - 4,000 (min-1)



0 - 4,000 (min-1)



0 - 2,100 (min-1)

Weight

1.6kg (with BSL36A18 battery)

Length

127mm

Standard accessories

Driver bit and steel belt hook.
