Description

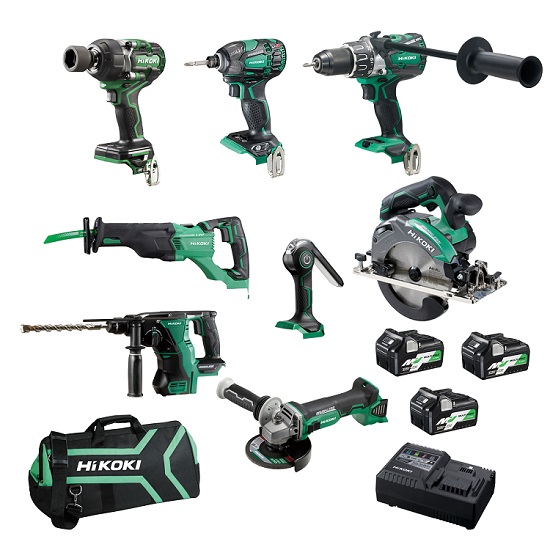

Get the job done faster and easier with HiKOKI KC18D8P2(PMZ) 18V 8 Piece Combo

Kit includes:

  • DV18DBL2 18V Brushless Impact (Hammer) Driver Drill
  • WH18DBDL2 18V Brushless Impact Driver
  • G18DBL 18V Brushless 125mm Angle Grinder with Slide Switch
  • DH18DBL 18V Brushless SDS-Plus Rotary Hammer
  • CR18DBL 18V Brushless Reciprocating Saw
  • C18DBAL 18V 165mm Brushless Circular Saw
  • UB18DJL 18V Worklight & Torch
  • WR36DE 36V Brushless 12.7mm Impact Wrench
  • 3 x BSL36A18 18V 5.0Ah / 36V
  • UC18YSL3 14.4 - 18V Charger
  • Large Site Bag



Warranty:

  • 3 Years Standard Warranty
  • 6 Years Extended Warranty if registered online



Click here to find the closest HiKOKI dealer near you

Specifications

DV18DBL2 18V Brushless Impact (Hammer) Driver Drill

Capacity Masonary 16mm
Wood 76mm
Steel 13mm
No load speed 0 - 500 / 0 - 2,100 (min-1)
No load impact rate 0 - 31,500 (min-1)
Max. torque Hard 136Nm
Soft 62Nm
Weight 2.5kg (with BSL36A18 battery)
Length 204mm



WH18DBDL2 18V Brushless Impact Driver

Capacity Bolt M5 - M18
High tension bolt M5 - M14
Screw M4 - M10
Max. torque 210Nm
No load speed Soft mode 0 - 900 (min-1)
Normal mode 0 - 2,900 (min-1)
Power mode 0 - 2,900 (min-1)
S mode (Self drilling) 0 - 2,900 (min-1)
Impact rate Soft mode 0 - 1,900 (min-1)
Normal mode 0 - 4,000 (min-1)
Power mode 0 - 4,000 (min-1)
S mode(Self drilling) 0 - 2,100 (min-1)
Weight 1.6kg (with BSL36A18 battery)
Length 127mm



G18DBL 18V Brushless 125mm Angle Grinder with Slide Switch

Wheel diameter 125mm
Switch type Slide
No load speed Auto mode 5,500 (min-1)
Standard mode 9,000 (min-1)
Spindle thread M14 x 2
Weight 2.4kg (with BSL36A18 battery)
Dimensions Length 326mm
Height 138mm
Grip circumference 152mm



DH18DBL 18V Brushless SDS-Plus Rotary Hammer

Capacity Masonary 26mm
Wood 27mm
Steel 13mm
No load speed 0 - 1,050 (min-1)
Impact rate 0 - 3,950 (min-1)
Impact energy 2.6J
Chuck type SDS Plus
Weight 3.7kg (with BSL36A18 battery)
Length 351mm



CR18DBL 18V Brushless Reciprocating Saw

Capacity Steel pipe 130mm
Wood 120mm
Steel plate 19mm
No load speed 0 - 1,600 / 2,300 / 2,500 (min-1)
Stroke length 32mm
Weight 3.4kg (with BSL36A18 battery)
Length 435mm



C18DBAL 18V 165mm Brushless Circular Saw

Capacity Max. of depth cut: 90° 66mm
Max. of depth cut: 45° 45mm
No load speed Power mode 4,100 (min-1)
Silent mode 2,500 (min-1)
Blade diameter 165mm
Angle cutting -5° - 45°
Weight 3.2kg (with BSL36A18 battery)
Dimensions Length 294mm
Width 188mm
Height 255mm



UB18DJL 18V Worklight & Torch

Light source 12 x 0.5W, 1 x 3W ultra bright white LEDs
Illumination Torch light 6,000 lx
High (12 LED) 110 lx
Mid (6 LED) 55 lx
Low (3 LED) 27 lx
Runtime Torch light 43 hrs (with BSL36A18 battery)
High (12 LED) 16 hrs (with BSL36A18 battery)
Mid (6 LED) 30 hrs (with BSL36A18 battery)
Low (3 LED) 51 hrs (with BSL36A18 battery)
Weight 0.3kg (without battery)
Dimensions Length 205mm
Width 78mm
Height 108mm



WR36DE 36V Brushless 12.7mm Impact Wrench

Capacity  Ordinary bolt M10-M24 (3/8" to 1")
High-strength bolt M10-M20 (3/8" to 3/4")
Tightening torque*¹  770Nm
Nut busting torque*²  1,050Nm
Tip condition  12.7 mm (1/2”) square drive
No-load rotation speed 4 0 to 2,400 min-¹
3 0 to 2,100 min-¹
2 0 to 1,800 min-¹
1 0 to 1,500 min-¹
Impact rate 4 0 to 3,400 min-¹
3 0 to 3,000 min-¹
2 0 to 2,600 min-¹
1 0 to 2,200 min-¹
LED light  White LED (SW interlocked)
Type of switch Trigger switch with forward/reverse changeover lever (with brake)
Weight  1.9kg (without battery)
Dimensions (L x H )  169 x 242mm

*¹: This torque is measured when tightening an M24 high-strength bolt (strength rating: 10.9) for 10 seconds with a hexagonal socket.

*²: This torque is measured when loosening an M27 high-strength bolt (strength rating :F10T) with a hexagonal socket.
