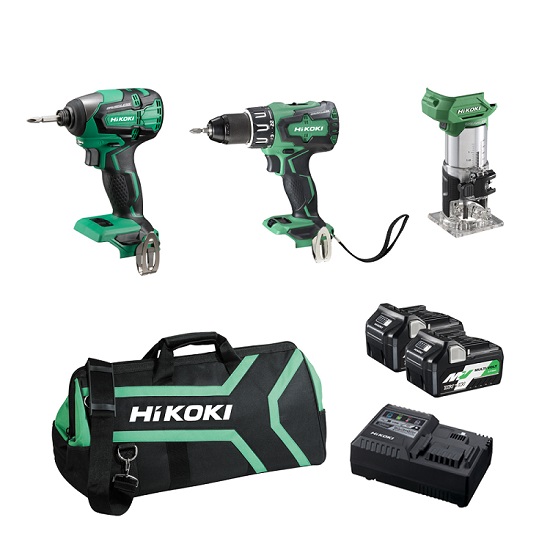

Description

  • DV18DBSL 18V Brushless Impact Driver Drill
  • WH18DBSL 18V Brushless Impact Driver
  • M1808DA 18V Brushless Laminate Trimmer
  • 2 x BSL36A18 Li-ion Slide Battery A
  • UC18YSL3 Rapid Charger with Cooling and USB port
  • Large site bag

Specifications

DV18DBSL 18V Brushless Impact Driver Drill

Type of power  18V
Type of motor  Brushless
Capacity Driving screw Machine  6mm
Wood 8mm dia x 100mm (with prepared holes)
Drilling 1.6mm Steel  13mm
1.6mm Aluminium  13mm
18mm Wood 50mm
Drill chuck capacity Mount type  Screw on (UNF 1/2" to 20)
Diameter  1.5-13mm
No load speed Low  0-400 (min-¹)
High  0-1,800 (min-¹)
Max. impact rate Low 6000 (min-¹)
High 27,000  (min-¹)
Max. torque Soft  40Nm
Hard  70Nm
Slip torque  22 positions 1.0-4.5Nm
Weight  1.7kg
Dimensions
(L x W x H )
184 x 233 x 78mm

WH18DBSL 18V Brushless Impact Driver

Type of power  18V
Type of motor  Brushless
Capacity Small screw  4-8mm
Standard bolt   M5-M16
High strength bolt   M5-M12
Tightening torque*¹  172Nm
Tip condition  6.35mm bit holder
No load speed  0-3,100 (min-¹)
Impact rate  0-3,400 (min-¹)
Max. tightening torque  172Nm
Weight 1.3kg
Dimensions
(L x H )
128 x 222 mm
*¹: This torque is measured when tightening an M16 high strength bolt (strength rating 12.9) for 3 seconds with a hexagonal socket.

M1808DA 18V Brushless Laminate Trimmer

collet cone capacity  6.35 and 8mm
No-load speed 10,000 - 30,000 min-¹
Type of motor  DC brushless motor
Weight  1.7kg
Dimensions
(L x H x W)
 109 x 229 x 100 mm
