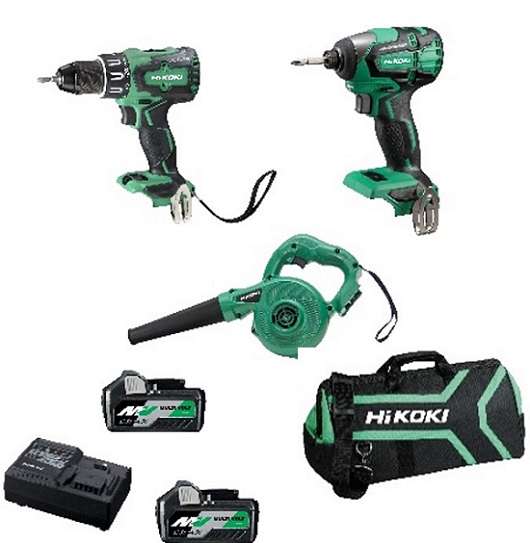

Description

  • DV18DBSL 18V Brushless Impact Driver Drill
  • WH18DBSL 18V Brushless Impact Driver
  • RB18DSL 18V Blower (Accessories not included)
  • 2 x BSL36A18 Li-ion Slide Battery A
  • UC18YSL3 Rapid Charger with Cooling and USB port
  • Large site bag

Specifications

DV18DBSL 18V Brushless Impact Driver Drill

Type of power  18V
Type of motor  Brushless
Capacity Driving screw Machine  6mm
Wood 8mm dia x 100mm (with prepared holes)
Drilling 1.6mm Steel  13mm
1.6mm Aluminium  13mm
18mm Wood 50mm
Drill chuck capacity Mount type  Screw on (UNF 1/2" to 20)
Diameter  1.5-13mm
No load speed Low  0-400 (min-¹)
High  0-1,800 (min-¹)
Max. impact rate Low 6000 (min-¹)
High 27,000  (min-¹)
Max. torque Soft  40Nm
Hard  70Nm
Slip torque  22 positions 1.0-4.5Nm
Weight  1.7kg
Dimensions
(L x W x H )
184 x 233 x 78mm

WH18DBSL 18V Brushless Impact Driver

Type of power  18V
Type of motor  Brushless
Capacity Small screw  4-8mm
Standard bolt   M5-M16
High strength bolt   M5-M12
Tightening torque*¹  172Nm
Tip condition  6.35mm bit holder
No load speed  0-3,100 (min-¹)
Impact rate  0-3,400 (min-¹)
Max. tightening torque  172Nm
Weight 1.3kg
Dimensions
(L x H )
128 x 222 mm
*¹: This torque is measured when tightening an M16 high strength bolt (strength rating 12.9) for 3 seconds with a hexagonal socket.

RB18DSL 18V Blower (Accessories not included)

Full load speed  0 - 15,000 (min-1)
Air volume  0 - 2.2 (m3/min)
Air pressure  0 - 3.9 (kPa)
Runtime  35min (with BSL36A18 battery)
Weight 1.6kg (with BSL36A18 battery)
Length  505mm
Battery type (sold separately) Compatible with all Hitachi and HiKOKI MultiVolt and 18V slide batteries
Standard accessories Short nozzle, long nozzle, dust bag, flexible hose and adaptor, crevice nozzle and concentrator nozzle. Batteries and charger available separately
