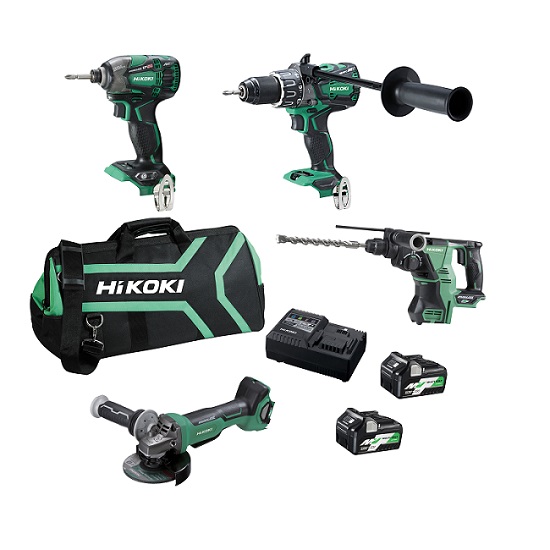

Description

  • DV36DA 36V Brushless Impact (Hammer) Driver Drill
  • WH36DB 36V Brushless Impact Driver
  • G3613DB 36V Brushless 125mm Paddle Angle Grinder
  • DH36DPA 36V Brushless SDS Plus Rot Hammer
  • 2 x BSL36A18 36V 2.5Ah/18V 5.0Ah Li-ion Battery
  • UC18YSL3 14.4 - 18V Li-ion Rapid Charger with cooling & USB port
  • Large site bag

Specifications

DV36DA 36V Brushless Impact (Hammer) Driver Drill

Capacity Masonry 20mm
Wood 102mm
Steel 16mm
No load speed 0 - 500 / 0 - 2,100 (min-¹)
No load impact rate 0 - 31,500 (min-¹)
Max. torque Hard 138Nm
Soft 64Nm
Weight (with BSL36A18 battery) 2.7 kg
Length 204mm
Standard accessories Side handle, Belt hook and Driver bit



WH36DB 36V Brushless Impact Driver

Capacity Bolt M5 - M18
High tension bolt M5 - M14
Screw M4 - M10
Max. torque 210Nm
No load speed Soft mode 0 - 900 (min-¹)
Normal mode 0 - 2,900 (min-¹)
Power mode 0 - 2,900 (min-¹)
S mode (Self drilling) 0 - 2,900 (min-¹)
Impact Rate Soft mode 0 - 2,000 (min-¹)
Normal mode 0 - 4,100 (min-¹)
Power mode 0 - 4,100 (min-¹)
S mode (Self drilling) 0 - 2,200 (min-¹)
Weight (with BSL36A18 battery) 1.6kg
Length 127mm
Standard accessories Belt hook



G3613DB 36V Brushless 125mm Paddle Angle Grinder

Wheel diameter 125mm
Switch type Paddle
No load speed Auto mode 5,500 (min-¹)
Standard mode 3,000 - 9,500 (min-¹)
Spindle thread M14 x 2
Weight (with BSL36A18 battery) 2.8kg
Dimensions (L x H) 358 x 139 mm
Dimensions – Grip circumference 146mm
Standard accessories Side handle, Grinding disc and Wrench



DH36DPA 36V Brushless SDS Plus Rot Hammer

Capacity Masonry 28mm
Wood 32mm
Steel 13mm
No load speed 0 - 1,100 (min-¹)
Impact rate 0 - 4,300 (min-¹)
Chuck type SDS Plus
Weight 4.2kg
Length 400mm
Standard accessories Side Handle
