Description

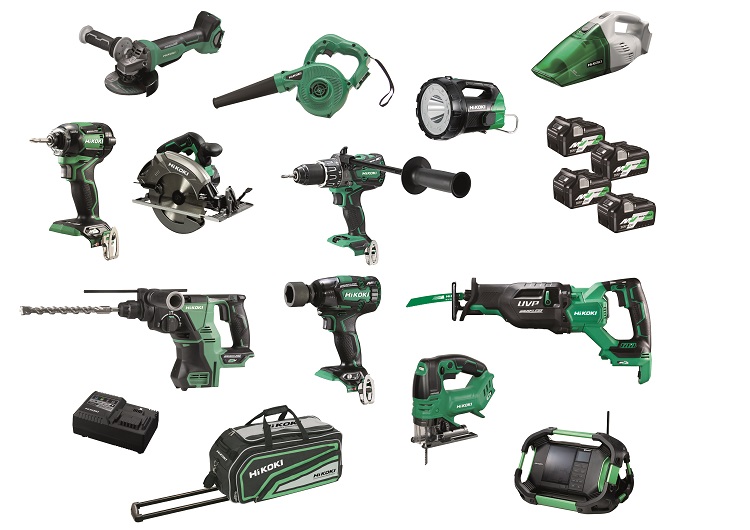

Get the job done faster and easier with HiKOKI KC36D12P2(HRZ) 36V 12 Piece Carpenter Combo

Kit includes:

  • DV36DA Brushless 36V Impact (Hammer) Driver Drill
  • WH36DC Brushless 36V Impact Driver
  • G3613DB Brushless 36V Angle Grinder with Paddle Switch
  • CR36DA Brushless 36V Reciprocating Saw
  • C3607DA Brushless 36V 185mm Circular Saw
  • WR36DC Brushless 36V 12.7mm Impact Wrench
  • CJ36DA Brushless 36V  160mm Jigsaw with Top Handle
  • DH36DPA Brushless 36V SDS Plus Rotary Hammer
  • RB18DC 18V Blower
  • R18DSL 18V Wet & Dry Vacuum
  • UR18DSDL 18V Digital Radio with Bluetooth
  • UB18DA(W4Z) 18V Search Light
  • 4 x MultiVolt Battery (A) BSL36A18
  • 1 x Muti Port Charger UC18YTSL
  • Premium Site Bag - 402096



Warranty:

  • 3 Years Standard Warranty
  • 6 Years Extended Warranty if registered online



Click here to find the closest HiKOKI dealer near you

Specifications

DV36DA Brushless 36V Impact (Hammer) Driver Drill

Capacity Masonry 20mm
Wood 102mm
Steel 16mm
No load speed 0 - 500 / 0 - 2,100 (min-1)
No load impact rate 0 - 31,500 (min-1)
Max. torque Hard 138Nm
Soft 64Nm
Weight 2.7kg (with BSL36A18 battery)
Length 204mm



WH36DC Brushless 36V Impact Driver

Power  36V
Motor  Brushless
Capacity Small screw*¹  4 to 10 mm (5/32" to 3/8")
Ordinary bolt  5 to 18 mm (3/16'' to 23/32'')
High tension bolt  5 to 14 mm (3/16'' to 9/16'')
Self drilling screw 3.5 to 6 mm (1/8" to 1/4") in diameter
Tightening torque*² Power mode 215 Nm
Bolt mode  215 Nm
Soft mode  76 Nm
No-load speed (with a battery fully charged at 20°C) Power mode 0 to 3,400 min-¹
Bolt mode  0 to 2,900 min-¹
Bolt single mode  0 to 2,900 min-¹
Soft mode  0 to 900 min-¹
Self drilling screw mode  0 to 3,700 min-¹
Impact rate (with a battery fully charged at 20°C) Power mode 0 to 4,100 min-¹
Bolt mode  0 to 4,100 min-¹
Bolt single mode   0 to 4,100 min-¹
Soft mode  0 to 2,000 min-¹
Self drilling screw mode 0 to 2,200 min-¹
Drive  6.35 mm (1/4”) bit holder
Type of switch Variable speed trigger switch with forward/reverse changeover lever (with brake)
LED light White LED (Always ON, Light only SW-ON, and Always OFF)
Weight  1.6 kg
Dimensions (L x H )  114 x 241 mm

*¹: Tapping screws and wood screws 3 mm in diameter are the smallest screws that the Model WH 36DC can tighten.

*²: When tightening an M16 high-tension bolt (strength grade 10.9) for three seconds with the socket adapter and the hexagon socket (40 mm in overall length) attached.



G3613DB Brushless 36V Angle Grinder with Paddle Switch

Wheel diameter 125mm
Switch type Paddle
No load speed Auto mode 5,500 (min-1)
Standard mode 3,000 - 9,500 (min-1)
Spindle thread M14 x 2
Weight 2.8kg (with BSL36A18 battery)
Dimensions Length 358mm
Height 139mm
Grip circumference 146mm



CR36DA Brushless 36V Reciprocating Saw

Capacity Steel pipe 130mm
Wood 300mm
Steel plate 19mm
No load speed 0-1,700 / 0-2,000 / 0-2,500 / 0-3,000Spm
Stroke length 32mm
Weight 4.8kg including BSL36A18 battery
Length 457mm



C3607DA Brushless 36V 185mm Circular Saw

Capacity Max. of depth cut: 90° 62mm
Max. of depth cut: 45° 47.5mm
No load speed Power mode 4,300 (min-1)
Silent mode 2,000 (min-1)
Blade diameter 185mm
Angle cutting -5° - 45°
Weight 4.1kg (with BSL36A18 battery)
Dimensions Length 318mm
Width 204mm
Height 267mm



WR36DC Brushless 36V 12.7mm Impact Wrench

Capacity Ordinary Bolt M10 - M20
High-strength bolt M10 - M16
Max. torque Tightening 320Nm
Tip condition 12.7mm (1/2") square drive
Dimensions (L x H) 145 x 244mm



CJ36DA Brushless 36V  160mm Jigsaw with Top Handle

Capacity Wood 160mm
Mild Steel 10mm
Stainless Steel 3.2mm
No-load speed Standard mode 800 - 3,500 (min-1)
Stroke 26mm
Minimum Cutting Radius 25mm
Weight 2.7kg (with BSL36A18 battery)
Dimensions Length 277mm
Height 206mm



DH36DPA Brushless 36V SDS Plus Rotary Hammer

Capacity Masonry 28mm
Wood 32mm
Steel 13mm
No load speed 0 - 1,100 (min-1)
Impact rate 0 - 4,300 (min-1)
Chuck type SDS Plus
Weight 4.2kg (with BSL36A18 battery)
Length 400mm



RB18DC 18V Blower & Vacuum

Air volume *¹  3.5 m³/min
Maximum air velocity *²  95m/s
Average air velocity *²  78 m/s
Continuous operating time per charge 20 to 130 minutes*³
Switch type  Trigger
Type of motor  Brushed
Weight  1.1kg (without battery)
Dimensions (L x H x W)  490 x 207 x 150mm

*¹ Without nozzle

*² With nozzle

*³ With BSA36A18 battery



R18DSL 18V Wet & Dry Vacuum

Capacity Dust: 670ml / Liquid: 120ml
Runtime 50min (with BSL36A18 battery)
Weight 1.5kg (with BSL36A18 battery)
Length 430mm



UR18DSDL 18V Digital Radio with Bluetooth

AM frequency 522 - 1629 (KHz)
FM frequency 87.5 - 108 (MHz)
Speaker 90mm (8Ω) 7W x 2
Weight 4.0kg (without battery)
Dimensions Length 405mm
(without accessories) Width 312mm
  Height 265mm



UB18DA 18V Search Light

Lighting mode Spot + wide 2,500 lm
Spot 1,100 lm
Wide 1,300 lm
Wide (eco) 400 lm
Spot 6 hrs (with BSL1860 battery)
Wide 5.8 hrs (with BSL1860 battery)
Wide (eco) 22 hrs (with BSL1860 battery)
Weight 1.85 kg
Dimensions Length 280mm
Width 203mm
Height 204mm
