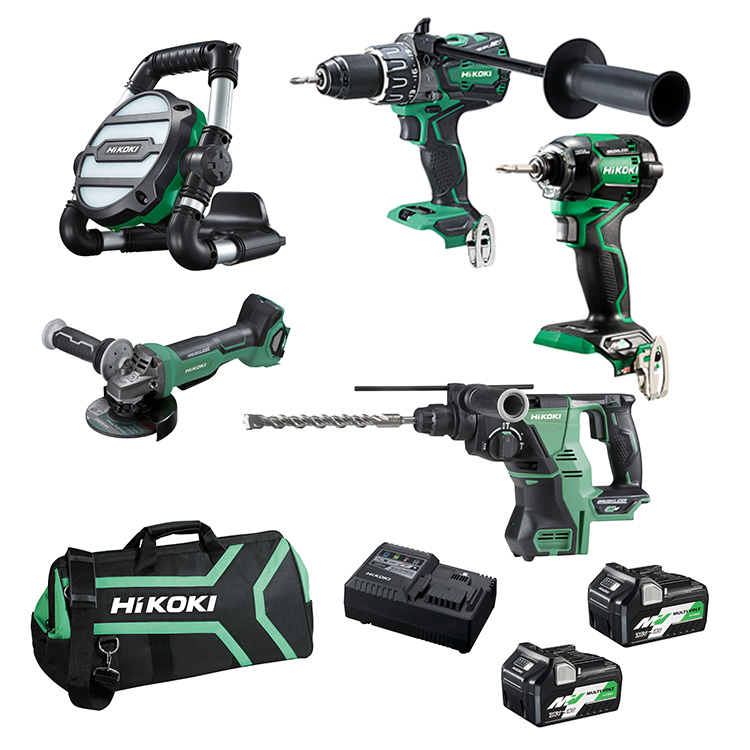

Description

1 x DV36DA(H4Z) 36V Brushless Impact (Hammer) Driver Drill
1 x WH36DC(H4Z) 36V Brushless 1/4" Impact Driver
1 x G3613DB(H4Z) 36V Brushless 125mm Angle Grinder with Paddle Switch
1 x DH36DPA(H4Z) 36V Brushless SDS Plus Rotary Hammer
1 x UB18DGL(L0Z) 18V Worklight
2 x BSL3618 36V 2.5Ah/ 18V 5.0Ah MultiVolt Li-ion Battery
1 x UC18YSL3(H0Z) Li-ion Rapid Slide Battery Charger
1 x 402094 Large Site Bag

Specifications

36V Brushless Impact (Hammer) Driver Drill

pacity

Masonry

20mm

Wood 102mm
Steel 16mm

No load speed

0 - 500 / 0 - 2,100 (min-1)

No load impact rate

0 - 31,500 (min-1)



Max. torque

Hard

138Nm

Soft

64Nm

Weight

2.7kg (with BSL36A18 battery)

Length

204mm

Battery type

BSL36A18: Li-ion MultiVolt (Battery A)

Standard accessories

2 x BSL36A18 MultiVolt batteries, UC18YSL3 rapid charger, side handle, belt hook, driver bit and stackable case.

WH36DC 36V Brushless 1/4" Impact Driver

Power  36V
Motor  Brushless
Capacity Small screw*¹  4 to 10 mm (5/32" to 3/8")
Ordinary bolt  5 to 18 mm (3/16'' to 23/32'')
High tension bolt  5 to 14 mm (3/16'' to 9/16'')
Self drilling screw 3.5 to 6 mm (1/8" to 1/4") in diameter
Tightening torque*² Power mode 215 Nm
Bolt mode  215 Nm
Soft mode  76 Nm
No-load speed (with a battery fully charged at 20°C) Power mode 0 to 3,400 min-¹
Bolt mode  0 to 2,900 min-¹
Bolt single mode  0 to 2,900 min-¹
Soft mode  0 to 900 min-¹
Self drilling screw mode  0 to 3,700 min-¹
Impact rate (with a battery fully charged at 20°C) Power mode 0 to 4,100 min-¹
Bolt mode  0 to 4,100 min-¹
Bolt single mode   0 to 4,100 min-¹
Soft mode  0 to 2,000 min-¹
Self drilling screw mode 0 to 2,200 min-¹
Drive  6.35 mm (1/4”) bit holder
Type of switch Variable speed trigger switch with forward/reverse changeover lever (with brake)
LED light White LED (Always ON, Light only SW-ON, and Always OFF)
Weight  1.6 kg
Dimensions (L x H )  114 x 241 mm

*¹: Tapping screws and wood screws 3 mm in diameter are the smallest screws that the Model WH 36DC can tighten.
*²: When tightening an M16 high-tension bolt (strength grade 10.9) for three seconds with the socket adapter and the hexagon socket (40 mm in overall length) attached.
