Description

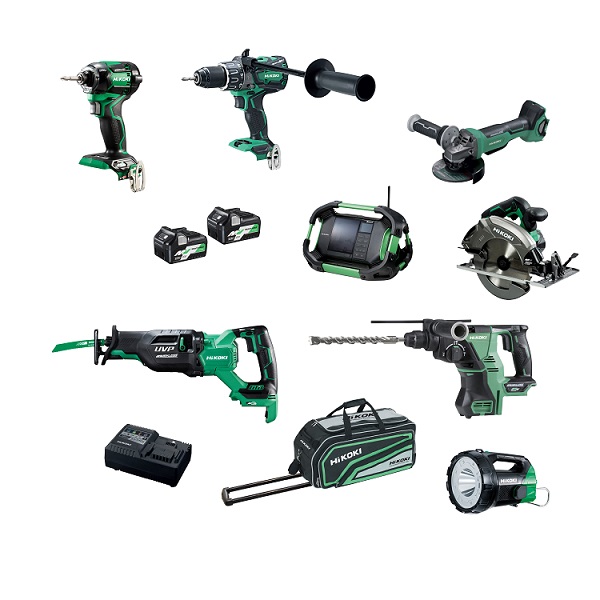

Get the job done faster and easier with HiKOKI KC36D8P2(HRZ) 36V 8 Piece Combo
Kit includes:
- DV36DA Brushless 36V Impact (Hammer) Driver Drill
- WH36DC Brushless 36V Impact Driver
- G3613DB Brushless 36V Angle Grinder with Paddle Switch
- CR36DA Brushless 36V Reciprocating Saw
- C3607DA Brushless 36V 185mm Circular Saw
- DH36DPA Brushless 36V SDS Plus Rotary Hammer
- UR18DSDL 18V Digital Radio with Bluetooth
- UB18DA 18V Search Light
- 2 x MultiVolt Battery (A) BSL36A18
- 1 x Rapid Charger UC18YSL3
- Premium Site Bag - 402096
Warranty:
- 3 Years Standard Warranty
- 6 Years Extended Warranty if registered online
Click here to find the closest HiKOKI dealer near you
Specifications
DV36DA Brushless 36V Impact (Hammer) Driver Drill
| Capacity | Masonry | 20mm |
| Wood | 102mm | |
| Steel | 16mm | |
| No load speed | 0 - 500 / 0 - 2,100 (min-1) | |
| No load impact rate | 0 - 31,500 (min-1) | |
| Max. torque | Hard | 138Nm |
| Soft | 64Nm | |
| Weight | 2.7kg (with BSL36A18 battery) | |
| Length | 204mm | |
WH36DC Brushless 36V Impact Driver
| Power | 36V | |
| Motor | Brushless | |
| Capacity | Small screw*¹ | 4 to 10 mm (5/32" to 3/8") |
| Ordinary bolt | 5 to 18 mm (3/16'' to 23/32'') | |
| High tension bolt | 5 to 14 mm (3/16'' to 9/16'') | |
| Self drilling screw | 3.5 to 6 mm (1/8" to 1/4") in diameter | |
| Tightening torque*² | Power mode | 215 Nm |
| Bolt mode | 215 Nm | |
| Soft mode | 76 Nm | |
| No-load speed (with a battery fully charged at 20°C) | Power mode | 0 to 3,400 min-¹ |
| Bolt mode | 0 to 2,900 min-¹ | |
| Bolt single mode | 0 to 2,900 min-¹ | |
| Soft mode | 0 to 900 min-¹ | |
| Self drilling screw mode | 0 to 3,700 min-¹ | |
| Impact rate (with a battery fully charged at 20°C) | Power mode | 0 to 4,100 min-¹ |
| Bolt mode | 0 to 4,100 min-¹ | |
| Bolt single mode | 0 to 4,100 min-¹ | |
| Soft mode | 0 to 2,000 min-¹ | |
| Self drilling screw mode | 0 to 2,200 min-¹ | |
| Drive | 6.35 mm (1/4”) bit holder | |
| Type of switch | Variable speed trigger switch with forward/reverse changeover lever (with brake) | |
| LED light | White LED (Always ON, Light only SW-ON, and Always OFF) | |
| Weight | 1.6 kg | |
| Dimensions (L x H ) | 114 x 241 mm | |
*¹: Tapping screws and wood screws 3 mm in diameter are the smallest screws that the Model WH 36DC can tighten.
*²: When tightening an M16 high-tension bolt (strength grade 10.9) for three seconds with the socket adapter and the hexagon socket (40 mm in overall length) attached.
G3613DB Brushless 36V Angle Grinder with Paddle Switch
| Wheel diameter | 125mm | |
| Switch type | Paddle | |
| No load speed | Auto mode | 5,500 (min-1) |
| Standard mode | 3,000 - 9,500 (min-1) | |
| Spindle thread | M14 x 2 | |
| Weight | 2.8kg (with BSL36A18 battery) | |
| Dimensions | Length | 358mm |
| Height | 139mm | |
| Grip circumference | 146mm | |
CR36DA Brushless 36V Reciprocating Saw
| Capacity | Steel pipe | 130mm |
| Wood | 300mm | |
| Steel plate | 19mm | |
| No load speed | 0-1,700 / 0-2,000 / 0-2,500 / 0-3,000Spm | |
| Stroke length | 32mm | |
| Weight | 4.8kg including BSL36A18 battery | |
| Length | 457mm | |
C3607DA Brushless 36V 185mm Circular Saw
| Capacity | Max. of depth cut: 90° | 62mm |
| Max. of depth cut: 45° | 47.5mm | |
| No load speed | Power mode | 4,300 (min-1) |
| Silent mode | 2,000 (min-1) | |
| Blade diameter | 185mm | |
| Angle cutting | -5° - 45° | |
| Weight | 4.1kg (with BSL36A18 battery) | |
| Dimensions | Length | 318mm |
| Width | 204mm | |
| Height | 267mm | |
DH36DPA Brushless 36V SDS Plus Rotary Hammer
| Capacity | Masonry | 28mm |
| Wood | 32mm | |
| Steel | 13mm | |
| No load speed | 0 - 1,100 (min-1) | |
| Impact rate | 0 - 4,300 (min-1) | |
| Chuck type | SDS Plus | |
| Weight | 4.2kg (with BSL36A18 battery) | |
| Length | 400mm | |
UR18DSDL 18V Digital Radio with Bluetooth
| AM frequency | 522 - 1629 (KHz) | |
| FM frequency | 87.5 - 108 (MHz) | |
| Speaker | 90mm (8Ω) 7W x 2 | |
| Weight | 4.0kg (without battery) | |
| Dimensions | Length | 405mm |
| (without accessories) | Width | 312mm |
| Height | 265mm | |
UB18DA 18V Search Light
| Lighting mode | Spot + wide | 2,500 lm |
| Spot | 1,100 lm | |
| Wide | 1,300 lm | |
| Wide (eco) | 400 lm | |
| Spot | 6 hrs (with BSL1860 battery) | |
| Wide | 5.8 hrs (with BSL1860 battery) | |
| Wide (eco) | 22 hrs (with BSL1860 battery) | |
| Weight | 1.85 kg | |
| Dimensions | Length | 280mm |
| Width | 203mm | |
| Height | 204mm | |
