Description

*Product Coming Soon

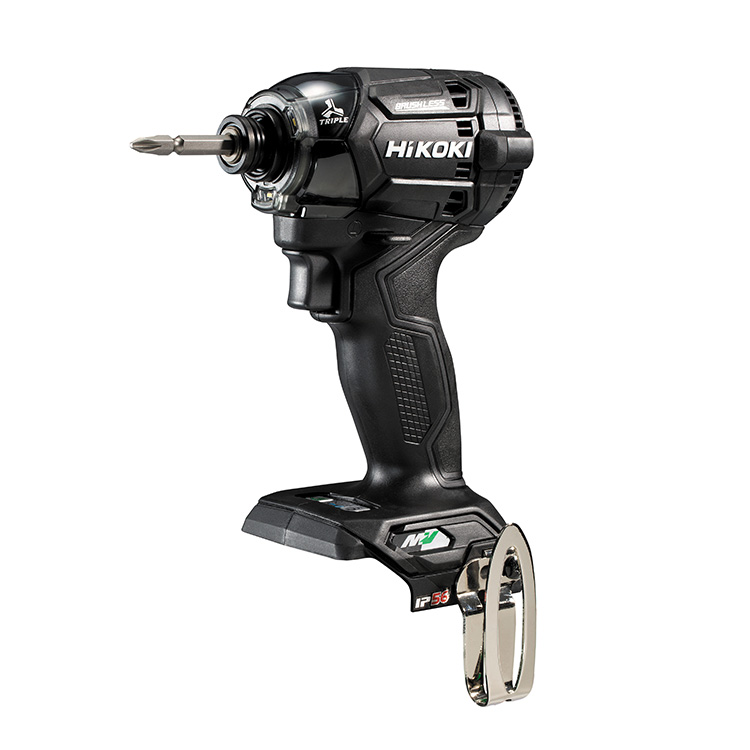

Get the job done faster and easier with HiKOKI. The HiKOKI WH36DC 36V Brushless 1/4" impact driver has triple hammer feature which makes three impacts per rotation providing high efficiency and ease to operate, conforms to IP56 protection class ratings (dust and water resistant) and compact design which makes it easy to use and ideal for confined space applications.

Product Features:

  • High torque impact driver
  • 5 Modes (Max, Bolt, Bolt Single, Soft, Self Drilling)
  • IP56 dust & water resistance*
  • Triple Hammer for high efficiency
  • 3 LED light provides more visibility in dark and compact areas



Warranty:

  • 3 Years Standard Warranty
  • 6 Years Extended Warranty if registered online



Click here to find your closes HiKOKI dealer

* These products are designed to be resistant to dust and water. However it is not guaranteed that they will not fail. Refer to user manual for recommended use and maintenance procedures. IP56 Rating applies to certain tools only. Batteries and chargers are not IP56 Rated.

Specifications

WH36DC 36V Brushless 1/4" Impact Driver

Power  36V
Motor  Brushless
Capacity Small screw*¹  4 to 10 mm (5/32" to 3/8")
Ordinary bolt  5 to 18 mm (3/16'' to 23/32'')
High tension bolt  5 to 14 mm (3/16'' to 9/16'')
Self drilling screw 3.5 to 6 mm (1/8" to 1/4") in diameter
Tightening torque*² Power mode 215 Nm
Bolt mode  215 Nm
Soft mode  76 Nm
No-load speed (with a battery fully charged at 20°C) Power mode 0 to 3,400 min-¹
Bolt mode  0 to 2,900 min-¹
Bolt single mode  0 to 2,900 min-¹
Soft mode  0 to 900 min-¹
Self drilling screw mode  0 to 3,700 min-¹
Impact rate (with a battery fully charged at 20°C) Power mode 0 to 4,100 min-¹
Bolt mode  0 to 4,100 min-¹
Bolt single mode   0 to 4,100 min-¹
Soft mode  0 to 2,000 min-¹
Self drilling screw mode 0 to 2,200 min-¹
Drive  6.35 mm (1/4”) bit holder
Type of switch Variable speed trigger switch with forward/reverse changeover lever (with brake)
LED light White LED (Always ON, Light only SW-ON, and Always OFF)
Weight  1.6 kg
Dimensions (L x H )  114 x 241 mm

*¹: Tapping screws and wood screws 3 mm in diameter are the smallest screws that the Model WH 36DC can tighten.
*²: When tightening an M16 high-tension bolt (strength grade 10.9) for three seconds with the socket adapter and the hexagon socket (40 mm in overall length) attached.
