Description
Upgrade your cutting capabilities with the 36V Brushless 165mm Plunge Cut Saw Kit C3606DPA(HRZ) from HiKOKI.
This comprehensive kit includes the powerful C3606DPA Plunge Cut Saw with a brushless motor for smooth and precise cuts up to 66mm deep. 2 x BSL36A18X batteries provide long-lasting power, while the UC18YSL3 rapid charger ensures quick recharging. Achieve accurate and straight cuts with the 1600mm guide rail. Whether you're a professional woodworker or a DIY enthusiast, this kit offers versatility, efficiency, and precision to elevate your woodworking projects. Take your skills to new heights with the HiKOKI 36V Brushless 165mm Plunge Cut Saw Kit.

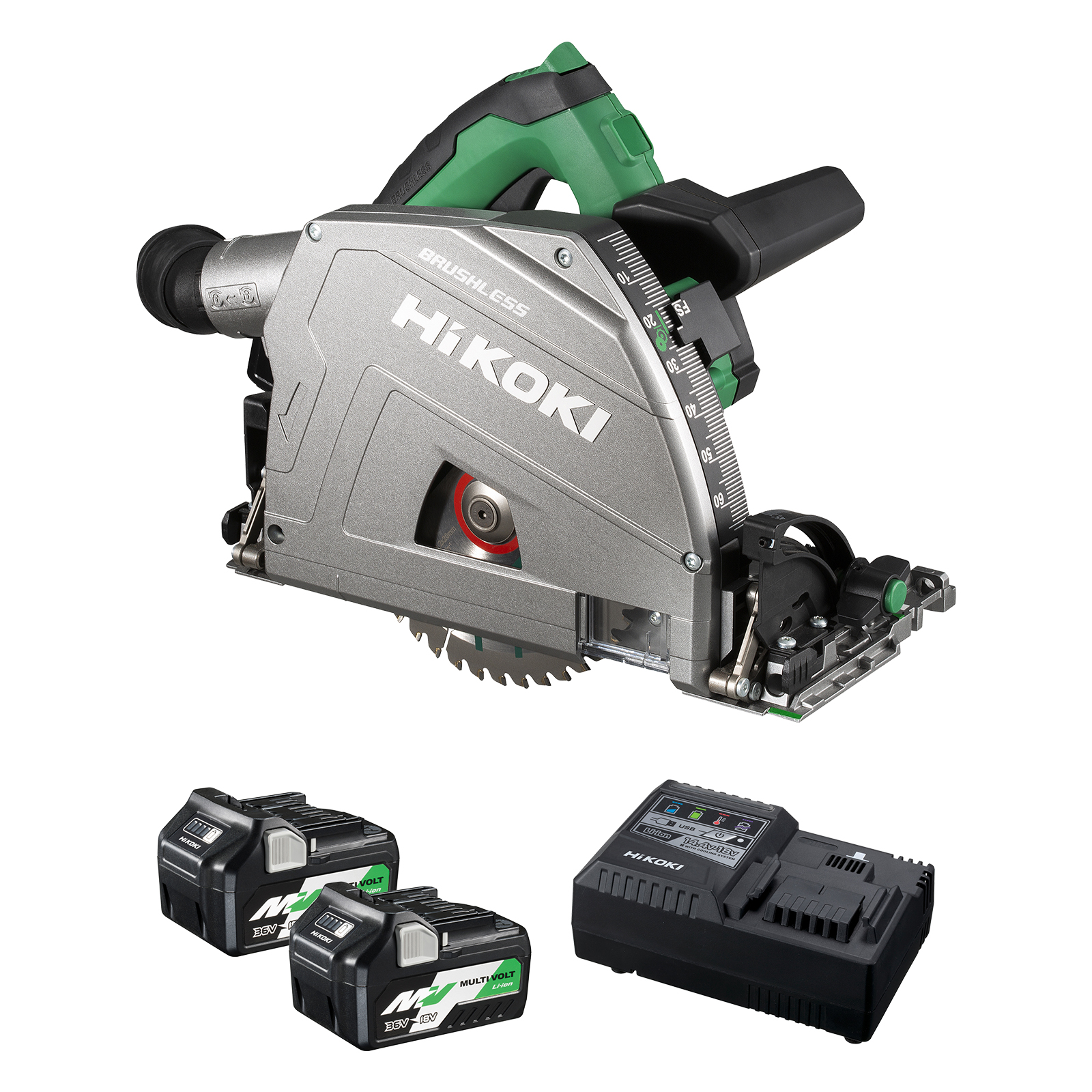

Combo Kit inlcudes:
- 1 x C3606DPA 36V Brushless 165mm Plunge Cut Saw
- 2 x BSL36A18X 18V 5.0Ah / 36V 2.5Ah MultiVolt Battery
- 1 x UC18YSL3 18V Rapid Charger with USB port
- 1 x 4100072 1600mm Guide Rail
- 1 x 379259 1600mm Guide Rail Carry Case
Warranty:
- Includes 3 Years Standard Warranty with an additional 3 Years when registered online. Click here to register.
Specifications
36V Brushless 165mm Plunge Cut Saw C3606DPA(H4Z)
| Voltage | 36V | |
| Motor type | Brushless | |
| Switch type | Trigger | |
| Blade diameter | 165mm | |
| Blade mounting hole diameter | 20mm | |
| Bevel capacity | -1° to 46° | |
| Maximum cutting depth | 0° | 66mm |
| 45° | 43mm | |
| No-load speed | 2,500 - 5,200 rpm | |
| Lock off button | Yes | |
| Brake Function | Yes | |
| Soft Start | Yes | |
| Overload Protection | Yes | |
| Overheat Protection | Yes | |
| Weight including battery | 5.4kg | |
| Dimensions L x W x H | 391 x 206 x 269mm | |
| Battery | Compatible with the HiKOKI Multi Volt battery | |
18V 5.0Ah / 36V 2.5Ah Multi Volt Battery BSL36A18
| Voltage | 18V / 36V |
| Ampere | 5.0Ah (36V) / 2.5Ah (18V) |
| Power Output | 1080W |
| Cell Technology | Lithium (Li-ion) cells |
| Cooling System | Yes |
| Battery Mounting | Slide |
| Battery Level Indicator | Yes |
| Approx. charge time UC18YSL3 | 32 minutes |
| Recharge cycles | Approx. 1,500 |
| Weight | 0.7kg (700 grams) |
| Dimensions (L x W x H) | 119 x 69 x 76mm |
| Compatibility | Compatible with HiKOKI 18V &36V Slide battery type products |
18V Rapid Charger with USB port UC18YSL3
| Voltage | 14.4V / 18V |
| Battery type | Lithium-ion (li-ion) Slide battery |
| Fan cooling | Yes |
| Charging time | Approx. 32min for 5.0Ah Battery |
| Approx. 38min for 6.0Ah Battery | |
| Status indicator | LED light |
| USP port | 5V, 2.0Ah |
