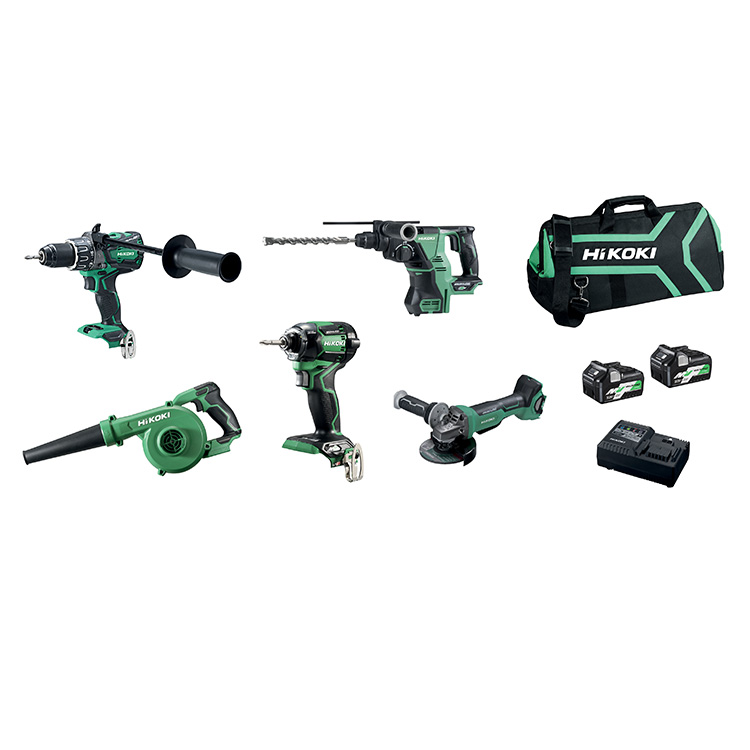

Description

  • 1 x DV36DA(H4Z) 36V Brushless Impact (Hammer) Driver Drill
  • 1 x WH36DC(H4Z) 36V Brushless 1/4" Impact Driver
  • 1 x G3613DB(H4Z) 36V Brushless 125mm Angle Grinder with Paddle Switch
  • 1 x DH36DPA(H4Z) 36V SDS Plus Rotary Hammer
  • 1 x RB18DC(H4Z) 18V Blower & Vacuum Pack
  • 2 x BSL36A18 36V 2.5Ah/ 18V 5.0Ah MultiVolt Li-ion Battery
  • 1 x UC18YSL3(H0Z) Li-ion Rapid Slide Battery Charger
  • 1 x 402094 Large Site Bag

Specifications

DV36DA(H4Z) 36V Brushless Impact (Hammer) Driver Drill

Capacity Masonry 20mm
Wood 102mm
Steel 16mm
No load speed 0-500 / 0-2,100 (min-1)
No load impact rate 0-31,500 (min-1)
Max. torque Hard 138Nm
Soft 64Nm
Weight 2.7kg (with BSL36A18)
Length 204mm
Battery type BSL36A18: Li-ion MultiVolt (Battery A)
Standard accessories  2 x BSL36A18 MultiVolt batteries, UC18YSL3 rapid charger, side handle, belt hook, driver bit and stackable case.

WH36DC(H4Z) 36V Brushless 1/4" Impact Driver

Power  36V
Motor  Brushless
Capacity
Small screw*¹  4 to 10 mm (5/32" to 3/8")
Ordinary bolt  5 to 18 mm (3/16'' to 23/32'')
High tension bolt  5 to 14 mm (3/16'' to 9/16'')
Self drilling screw 3.5 to 6 mm (1/8" to 1/4") in diameter
Tightening torque*² Power mode 215 Nm
Bolt mode  215 Nm
Soft mode  76 Nm
No-load speed (with a battery fully charged at 20°C)
Power mode 0 to 3,400 min-¹
Bolt mode  0 to 2,900 min-¹
Bolt single mode  0 to 2,900 min-¹
Soft mode  0 to 900 min-¹
Self drilling screw mode  0 to 3,700 min-¹
Impact rate (with a battery fully charged at 20°C)




Power mode 0 to 4,100 min-¹
Bolt mode  0 to 4,100 min-¹
Bolt single mode   0 to 4,100 min-¹
Soft mode  0 to 2,000 min-¹
Self drilling screw mode 0 to 2,200 min-¹
Drive 6.35 mm (1/4”) bit holder
Type of switch Variable speed trigger switch with forward/reverse changeover lever (with brake)
LED light White LED (Always ON, Light only SW-ON, and Always OFF)
Weight  1.6kg
Dimensions (L x H )  114 x 241mm

G3613DB(H4Z) 36V Brushless 125mm Angle Grinder with Paddle Switch

Wheel diameter

125mm

Switch type

Paddle

No load speed

Auto mode

5,500 (min-1)

Standard mode

3,000 - 9,500 (min-1)

Spindle thread

M14 x 2

Weight

2.8kg (with BSL36A18 battery)

Dimensions

Length

358mm

Height

139mm

Grip circumference

146mm

Battery type

BSL36A18 : Li-ion MultiVolt (Battery A)

Standard accessories

2 x BSL36A18 MultiVolt batteries, UC18YSL3 rapid charger, side handle, grinding disc, wrench and stackable case

DH36DPA(H4Z) 36V SDS Plus Rotary Hammer

Capacity

Masonry

28mm
Wood 32mm
Steel 13mm

No load speed

0 - 1,100 (min-1)

Impact rate

0 - 4,300 (min-1)

Impact energy

3.0j (EPTA Standard)

Chuck type

SDS Plus

Weight

4.2kg (with BSL36A18 battery)

Length

400mm

Battery type

Compatible with HiKOKI MultiVolt batteries

Standard accessories

Side handle
