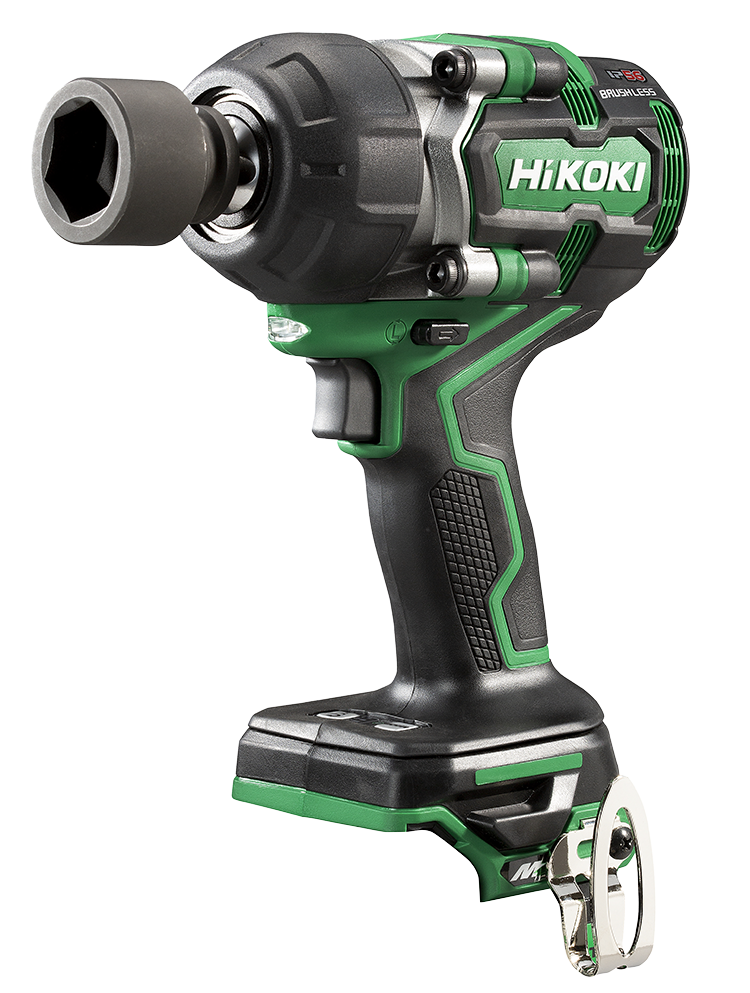

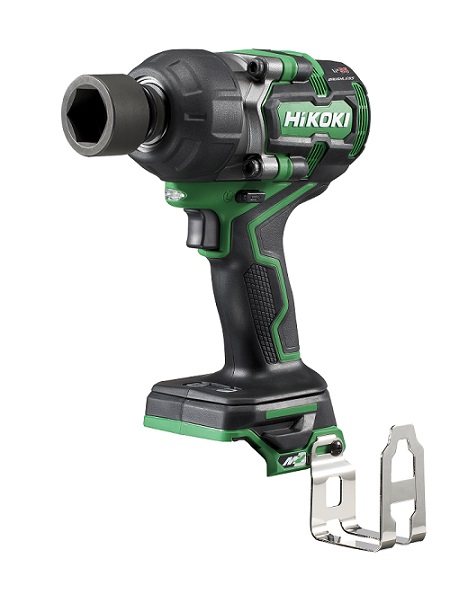

Description

  • Efficient brushless motor
  • Powerful tightening & loosening torque
  • Compact at 169mm in length
  • IP56 dust & water resistant

Specifications

Capacity  Ordinary bolt M10-M24 (3/8" to 1")
High-strength bolt M10-M20 (3/8" to 3/4")
Tightening torque*¹  770Nm
Nut busting torque*²  1,050Nm
Tip condition  12.7 mm (1/2”) square drive
No-load rotation speed 4 0 to 2,400 min-¹
3 0 to 2,100 min-¹
2 0 to 1,800 min-¹
1 0 to 1,500 min-¹
Impact rate 4 0 to 3,400 min-¹
3 0 to 3,000 min-¹
2 0 to 2,600 min-¹
1 0 to 2,200 min-¹
LED light  White LED (SW interlocked)
Type of switch Trigger switch with forward/reverse changeover lever (with brake)
Weight  1.9kg (without battery)
Dimensions (L x H )  169 x 242mm
*¹: This torque is measured when tightening an M24 high-strength bolt (strength rating: 10.9) for 10 seconds with a hexagonal socket.
*²: This torque is measured when loosening an M27 high-strength bolt (strength rating :F10T) with a hexagonal socket.
